GIGABYTE ギガバイト
マザーボード(LGA1700) 760M H DDR4 [MicroATX]
B760MHDDR4
Intel B760 Chipset搭載マザーボード
通常価格 ¥11,955(税別)
JAN:4571302220978
発売日 2024/03/08
残りわずか

 数量

Intel B760 Chipset搭載マザーボード

■第 14 / 13 / 12 世代 Intel Core プロセッサー対応
■Hybrid 6+1+1 デジタル電源フェーズ設計
■Dual Channel DDR4 : 2 スロット搭載 (XMP 対応)
■高速ストレージ : 2*PCIe 4.0 x4 M.2 コネクタ
■EZ-Latch:クイックリリース付 PCIe x16 スロット
■高速ネットワーク : GbE 有線 LAN
■充実した接続性 : HDMI、D-Sub
■Smart Fan 6 搭載 x4/x2 SSDs
■4 x SATA 6Gb/s connectors

詳しくは以下のサイトもご参照ください。 ※外部サイトへリンクします。
メーカーサイト:こちらをクリック   
商品スペック
メーカー希望
小売り価格(税別)
オープン
付属品 [バンドル・ソフトウェア]
Norton Internet Security (OEM version)
LAN bandwidth management software

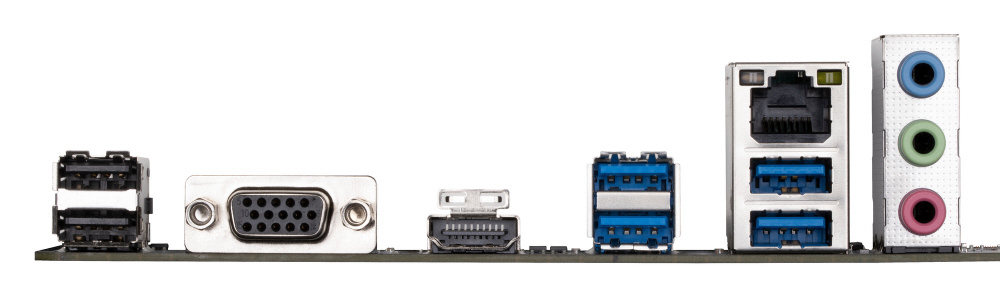

その他I/Oポート詳細 [バックパネル端子]
2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
LAN [有線 LAN]
Realtek GbE LAN chip (1 Gbps/100 Mbps)
USB [USB]
Chipset:
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel、2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel、4 ports available through the internal USB headers)
仕様1 [対応OS]Windows 11/10 64-bit
[フォームファクター]Micro ATX
[対応CPU]LGA1700 socket: Support for the 14th、13th、and 12th Generation Intel Core、Pentium Gold and Celeron Processors
[チップセット]Intel B760 Express
[メモリー]2 x DDR4 DIMM sockets supporting up to 64GB
[オーディオ]Realtek Audio CODEC
仕様2 [映像出力端子」
1 x D-Sub port、supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port、supporting a maximum resolution of 4096x2160@60 Hz

[拡張スロット]
CPU:
1 x PCI Express x16 slot、supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot、supporting PCIe 3.0 and running at x1
仕様3 [ストレージ端子]
CPU:
1 x M.2 connector (Socket 3、M key、type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3、M key、type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
メーカー保証年数 2年
