GIGABYTE ギガバイト

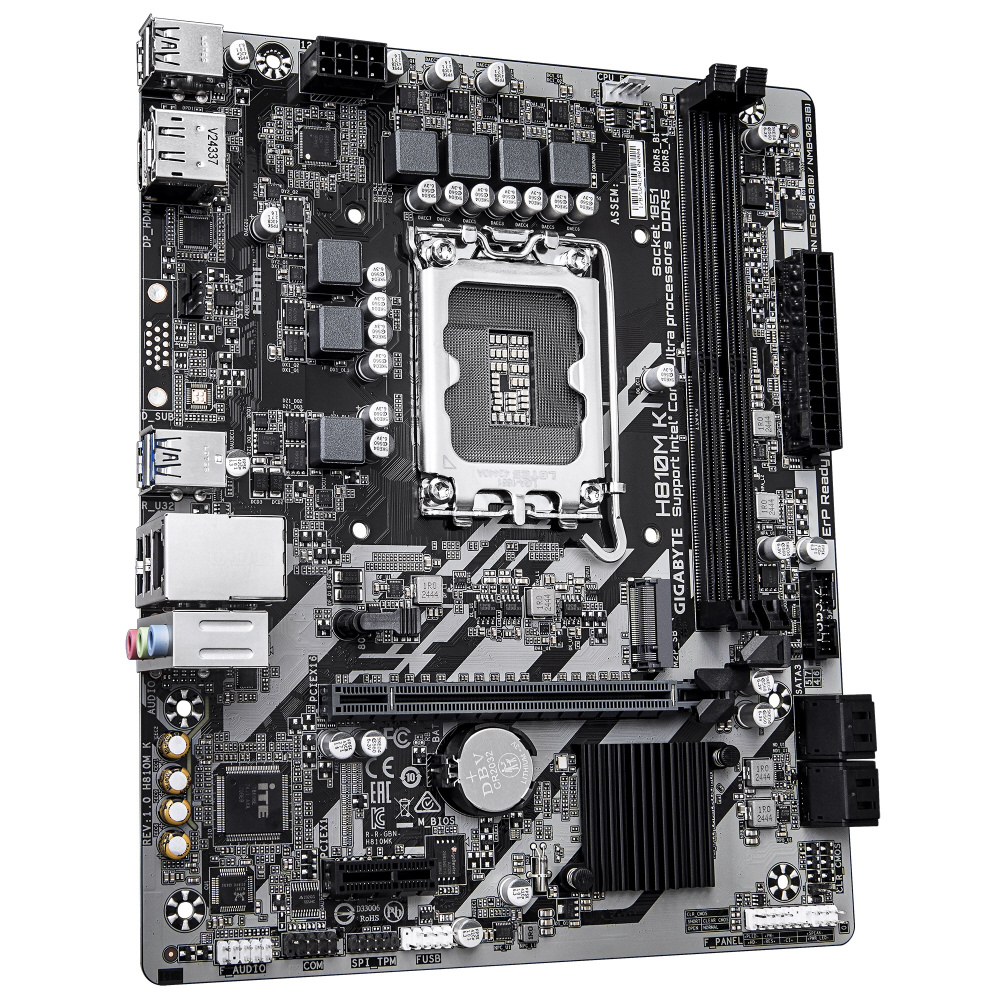

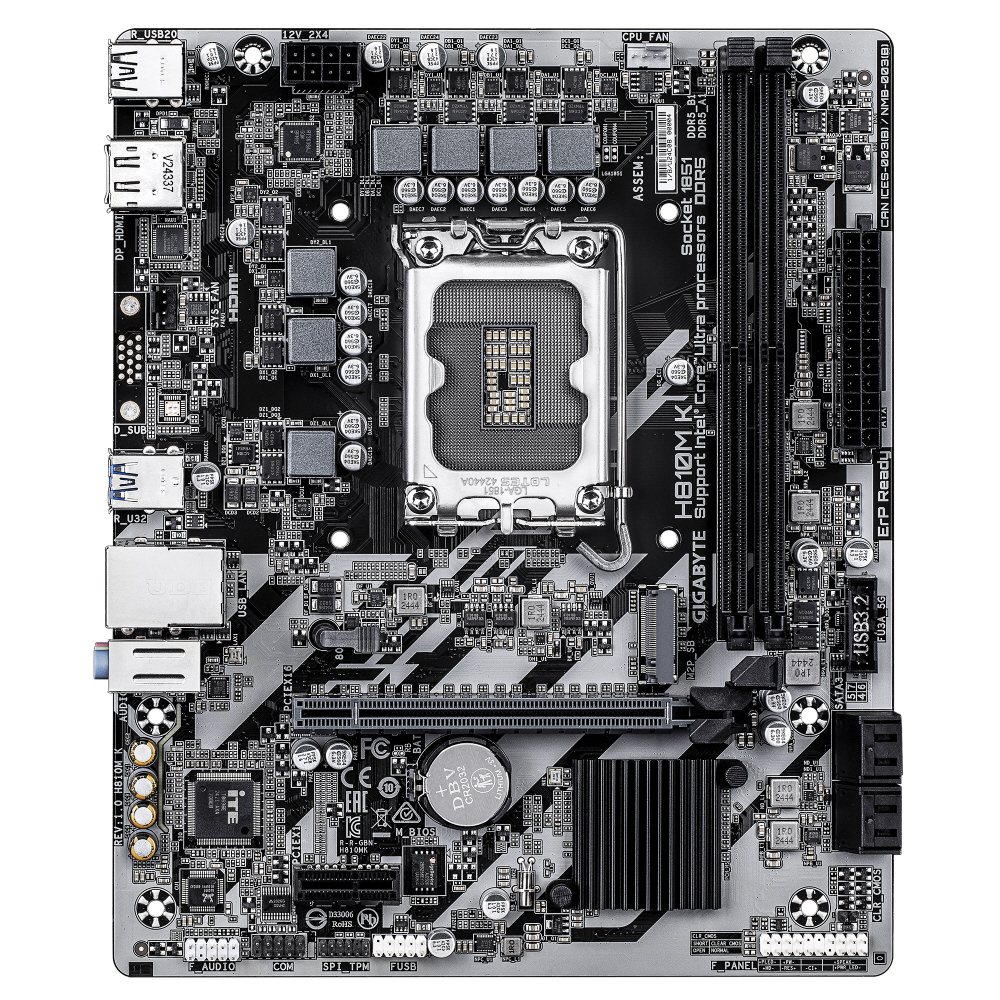

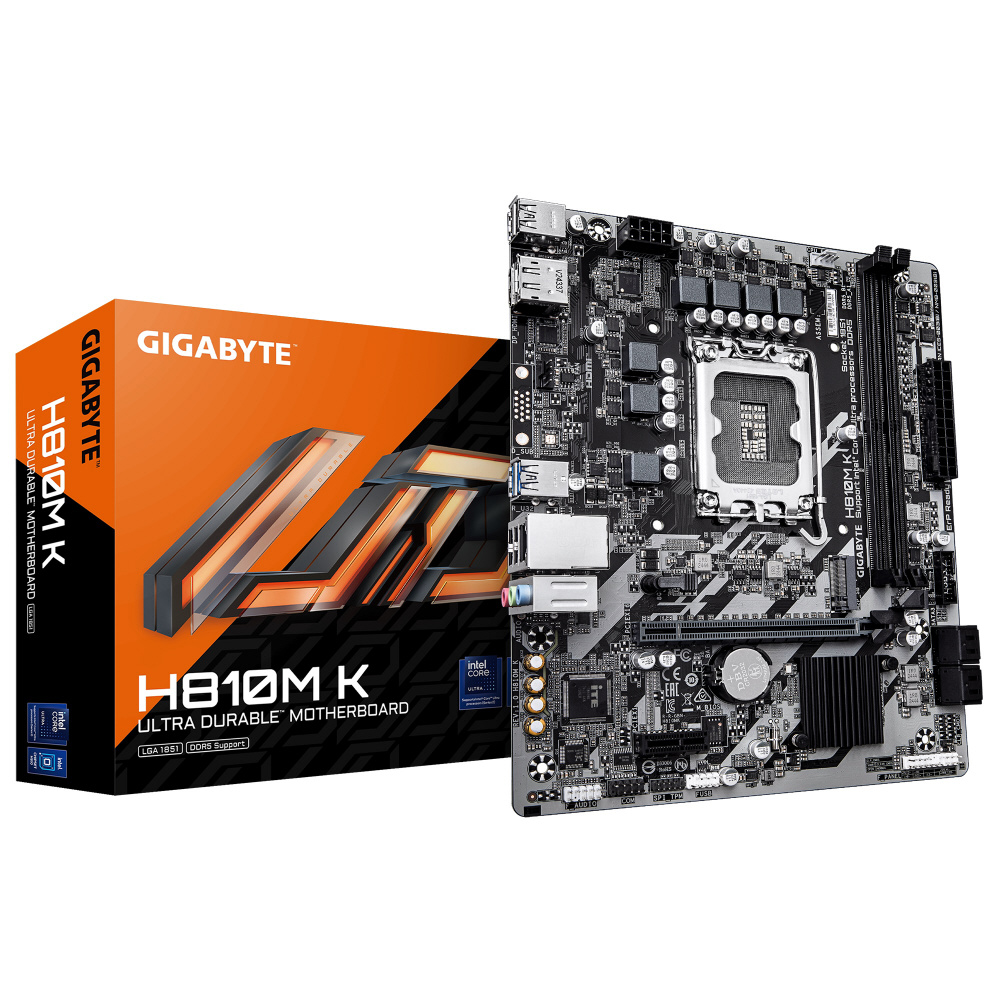

マザーボード(LGA1851) H810M K [MicroATX]
H810MK
Intel H810チップセット搭載、Intel Core Ultra プロセッサー (Series2) に対応したMicro-ATXマザーボード。
通常価格 ¥12,928(税別)
JAN:0889523047927
発売日 2025/02/21
在庫少

 数量

Intel H810チップセット搭載、Intel Core Ultra プロセッサー (Series2) に対応したMicro-ATXマザーボード。

■Intel H810チップセットを搭載し、Intel Core Ultra プロセッサー (Series2) のCPU・APUに対応。
■3+1+2フェーズのハイブリッドVRM設計により、安定した電力供給を実現します。
■PCIe 4.0 x4 M.2スロットを備え、高速なデータ転送が可能です。
■PCIe 4.0 x16スロットにEZ-Latch機構を採用し、グラフィックカードの取り外しが容易です。

詳しくは以下のサイトもご参照ください。 ※外部サイトへリンクします。
メーカーサイト:こちらをクリック   
商品スペック
メーカー希望
小売り価格(税別)
オープン
付属品 クイックスタートガイド、アクセサリーキット
バンドル・ソフトウェア
Norton Internet Security (OEM version)
LAN bandwidth management software

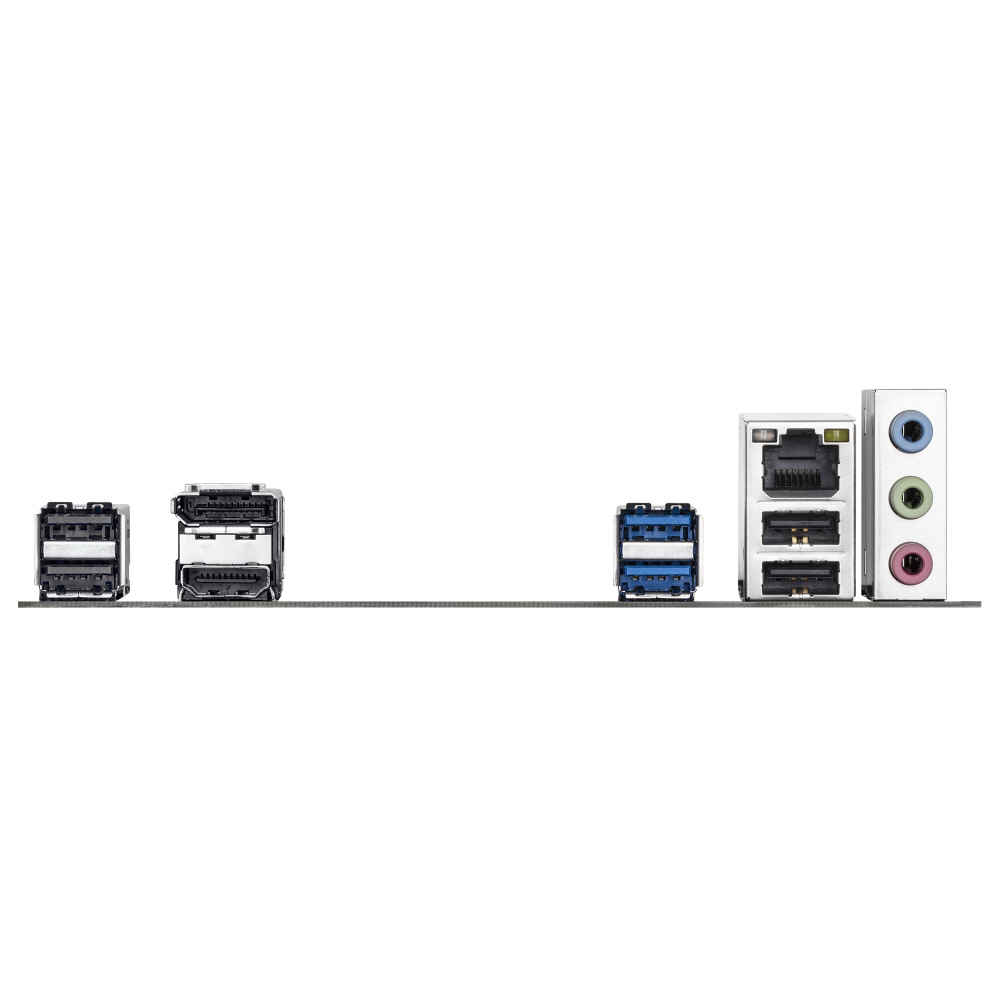

その他I/Oポート詳細 [バックパネル端子]
1 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
LAN [有線LAN]
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB [USB端子]
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel、2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel、2 ports available through the internal USB header)
仕様1 [対応OS]Windows 11/10 64-bit
[フォームファクター]Micro ATX
[対応CPU]LGA1851 socket
[チップセット]Intel H810 Express
[メモリー]2 x DDR5 DIMM sockets supporting up to 128 GB
[オーディオ]Realtek Audio CODEC
仕様2 [映像出力端子]
Integrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort、supporting a maximum resolution of 3840x2160@60Hz
1 x HDMI port、supporting a maximum resolution of 4096x2160@60Hz
仕様3 [拡張スロット]
CPU:
1 x PCI Express x16 slot、supporting PCIe 4.0 and running at x16 (PCIEX16)
Chipset:
1 x PCI Express x1 slot、supporting PCIe 3.0 and running at x1 (PCIEX1)

[ストレージ端子]
Chipset:
1 x M.2 connector (Socket 3、M key、type 2280 PCIe 4.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
メーカー保証年数 2年
