GIGABYTE ギガバイト

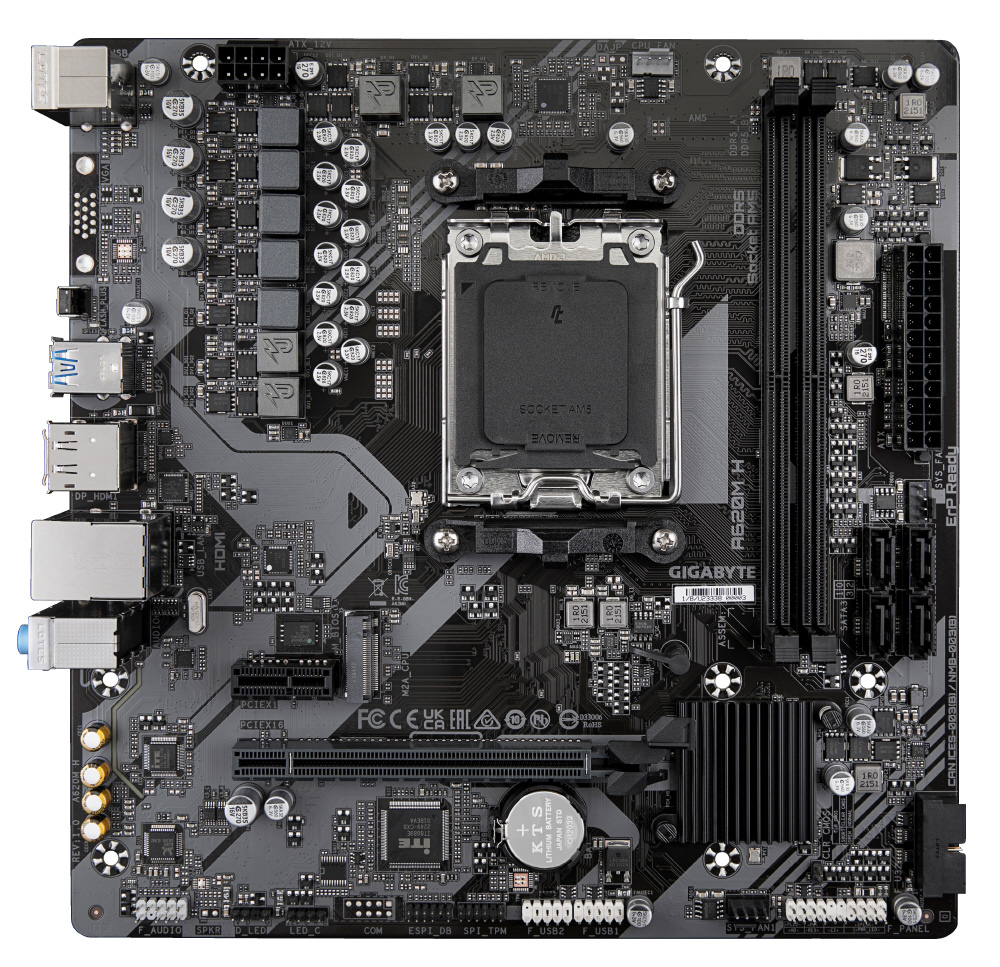

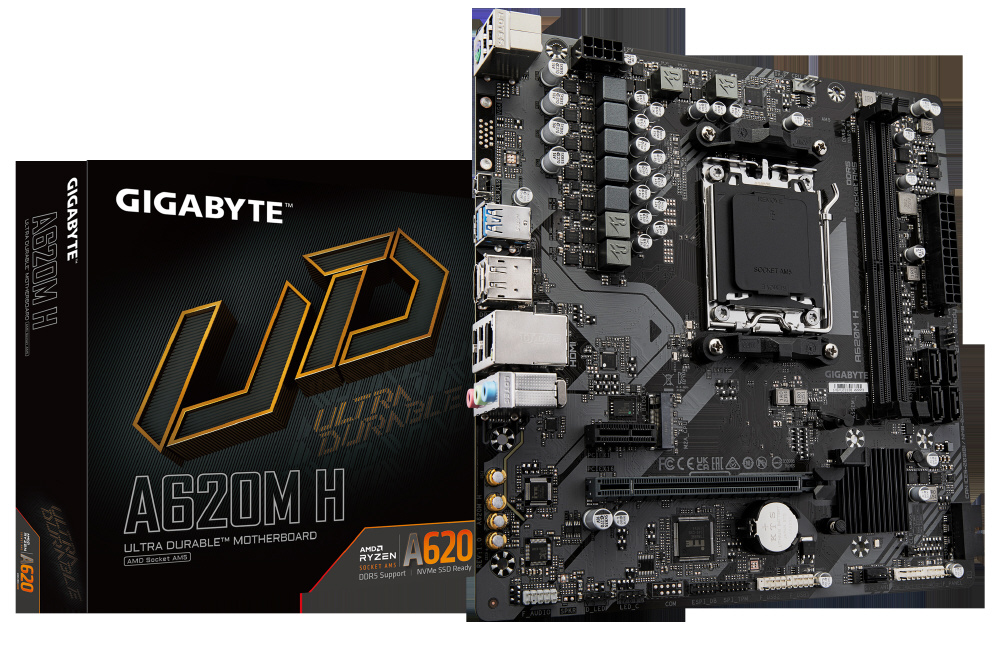

マザーボード(Socket AM5) A620M H [MicroATX]
A620MH
AMD A620チップセット搭載マザーボード
通常価格 ¥12,627(税別)
JAN:4571486465752
在庫あり

 数量

AMD A620チップセット搭載マザーボード

■AMD ソケット AM5:AMD Ryzen 7000 / 8000 / 9000 シリーズ・プロセッサー対応
■高性能:5+2+2 デジタル電源フェーズ設計
■Dual Channel DDR5:2 スロット搭載 (AMD EXPO & Intel XMP 対応)
■高速ストレージ:PCIe 4.0 x4 M.2 コネクタ
■EZ-Latch:クイックリリース付 PCIe x16 コネクタ
■高速ネットワーク:GbE 有線 LAN
■充実した接続性:DP、HDMI
■Smart Fan 6 搭載
■Q-Flash Plus 搭載
■日本国内正規代理店2年保証付

詳しくは以下のサイトもご参照ください。 ※外部サイトへリンクします。
メーカーサイト:こちらをクリック   
商品スペック
メーカー希望
小売り価格(税別)
オープン
付属品 バンドル・ソフトウェア
Norton Internet Security (OEM version)
LAN bandwidth management software

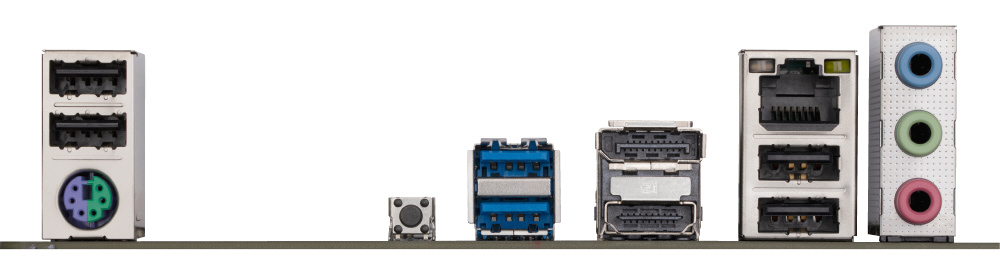

その他I/Oポート詳細 [バックパネル端子]
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
3 x audio jacks
LAN [有線LAN]
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB [USB端子]
CPU:
2 x USB 3.2 Gen 1 ports on the back panel
1 x USB 2.0/1.1 port on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
7 x USB 2.0/1.1 ports (3 ports on the back panel、4 ports available through the internal USB headers)
仕様1 [対応OS]Windows 11/10 64-bit
[フォームファクター]Micro ATX
[対応CPU]AMD Socket AM5、support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
[チップセット]AMD A620
[メモリー]2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
[オーディオ]Realtek Audio CODEC
仕様2 [映像出力端子]
1 x DisplayPort、3840x2160@144Hz
1 x HDMI port、4096x2160@60Hz

[拡張スロット]
1 x PCI Express x16slot、integrated in the CPU:
AMD Ryzen 7000Series support PCIe4.0 x16mode
AMD Ryzen 8000Series-Phoenix 1 support PCIe4.0 x8mode
AMD Ryzen 8000Series-Phoenix 2 support PCIe4.0 x4mode
Chipset:
1 x PCI Express x1slot、supporting PCIe3.0 and running at x1
仕様3 [ストレージ端子]
1 x M.2 connector、integrated in the CPU、supporting Socket 3、M key、type 2580 SSDs:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
メーカー保証年数 2年
